Section 6: Testing the deployment

Step 6.1: Ingress test

Using the floating public IP assigned to the FortiGate-A untrust port, try to reach the spoke VMs using the specific ports configured earlier:

TCP/2244
TCP/2245

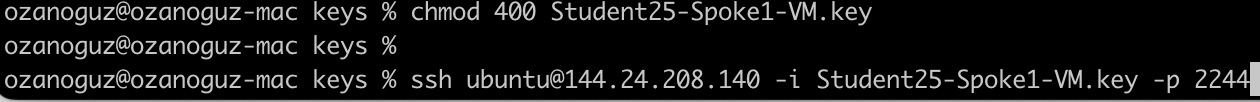

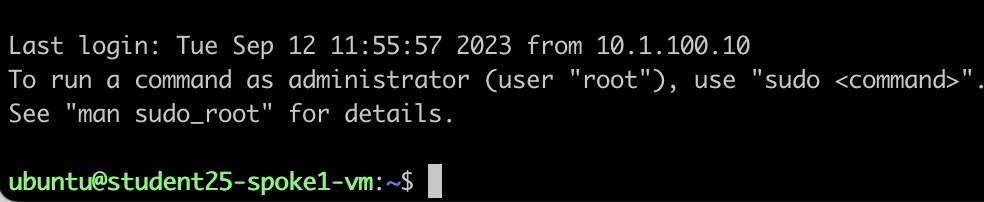

SSH to Spoke1-VM:

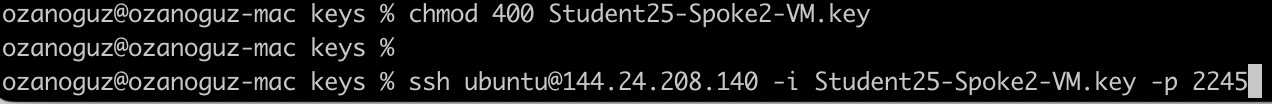

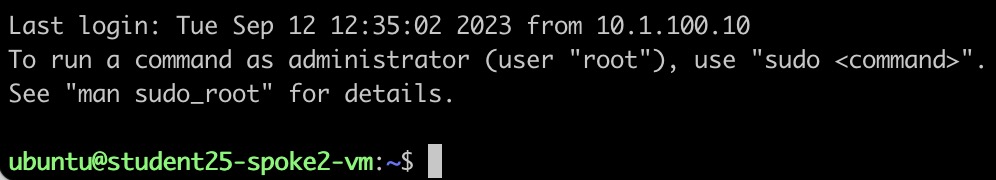

SSH to Spoke2-VM:

Verification:

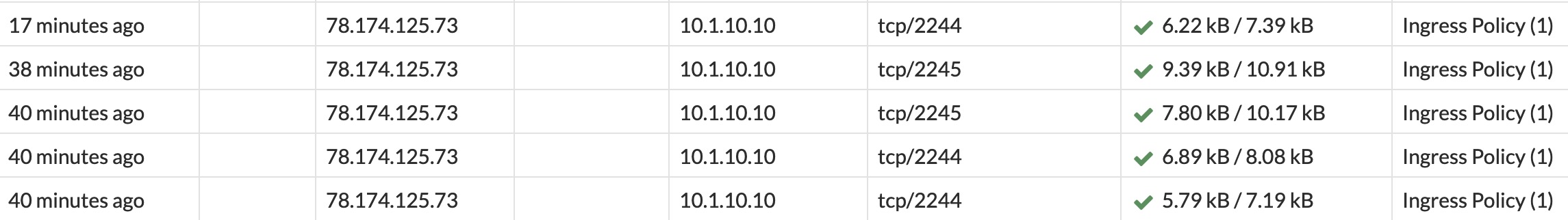

Check the FortiGate traffic logs.

Navigation path:

Log & Report > Forward Traffic

---

Step 6.2: Egress test

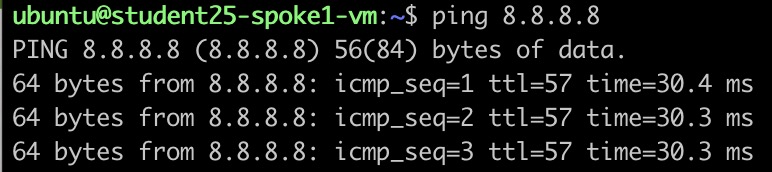

Try to ping Google DNS 8.8.8.8 from Spoke1-VM or Spoke2-VM.

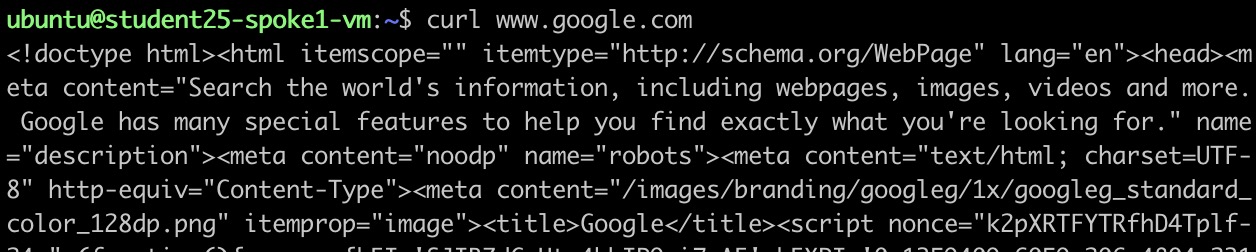

You can also use the curl command to reach www.fortinet.com.

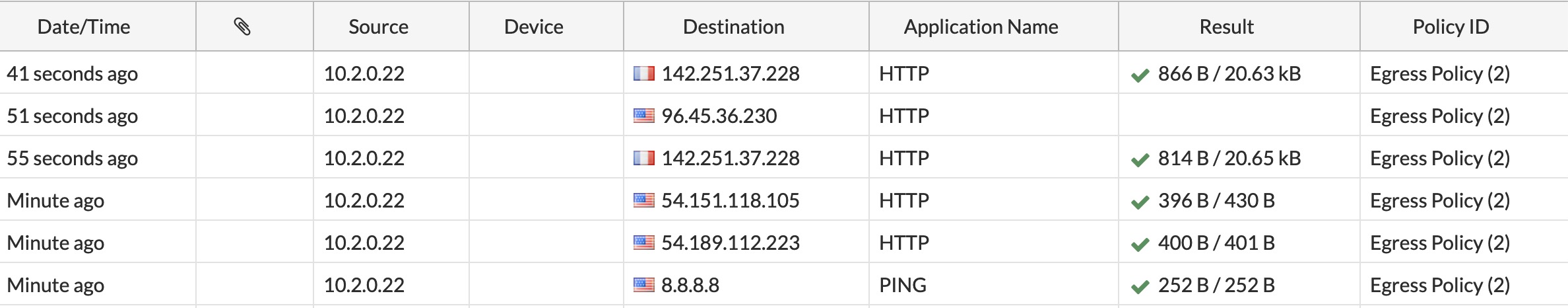

Check the FortiGate traffic logs.

Navigation path:

Log & Report > Forward Traffic

---

Step 6.3: East/West test

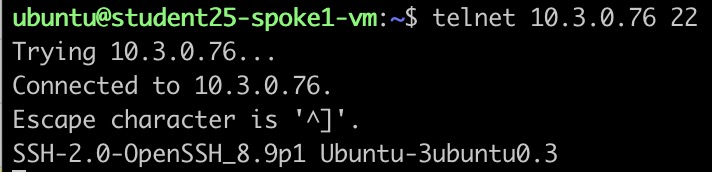

Try to reach Spoke2-VM from Spoke1-VM using SSH or Telnet to TCP port 22, as shown below.

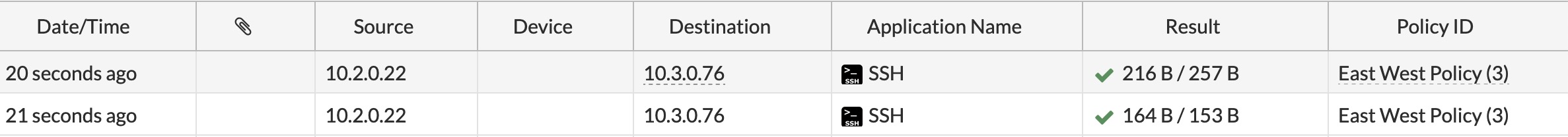

Check the FortiGate traffic logs.

Navigation path:

Log & Report > Forward Traffic

---

Checkpoint

Before continuing, confirm that:

• SSH access to Spoke1-VM works through TCP port 2244.
• SSH access to Spoke2-VM works through TCP port 2245.
• Ingress traffic appears in the FortiGate forward traffic logs.
• Spoke1-VM or Spoke2-VM can reach 8.8.8.8.
• The curl test to www.fortinet.com succeeds.
• Egress traffic appears in the FortiGate forward traffic logs.
• Spoke1-VM can reach Spoke2-VM using TCP port 22.
• East-West traffic appears in the FortiGate forward traffic logs.
